M-III offers numerous possibilities for configuration, as well as in operation, the interface and the output quality.

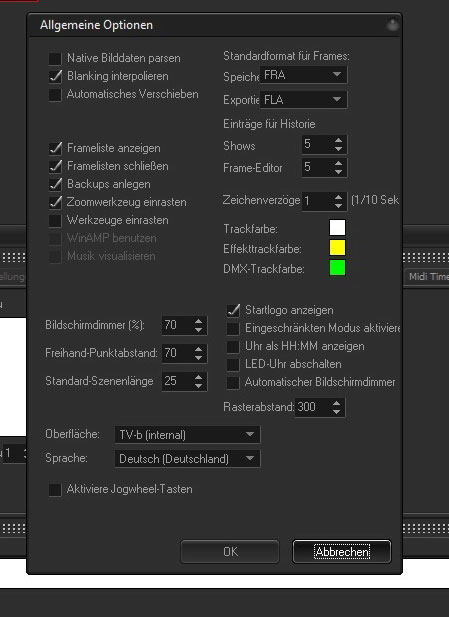

General options
In General Settings the setup of the interface and of the software is performed.
Most important adjustment options:
- Interface (Choosing a skin)
The drop down “Interface“ lets you chose among about 50 different designs for user interface. Changeover takes place immediately.
- Language
The drop down “Language“ lets you chose among different languages, in which the interface is displayed. Restart of the M-III after changing the language is necessary!
- Automatic screen dimmer
A very efficient tool. Once the box is checked, screen is going to be dimmed during the laser output. The level of darkening can be adjusted moreover at the panel “Screen Dimmer“.
- Interpolate Blanking
If the box is checked, blanking lines will be interpolated. Normally this function should be checked on; potentially it can be necessary to turn off interpolation. This function should be treated with care in order not to destruct the galvos of the laser deflection.
- Activating Jog wheel buttons
Highly interesting. If this box is checked, you can change the flow speed during a laser output with the left / right cursor keys.
For further information about any function, please hover with your mouse over it. A so-called “Note“ or “Hint” for each function will be opened.
